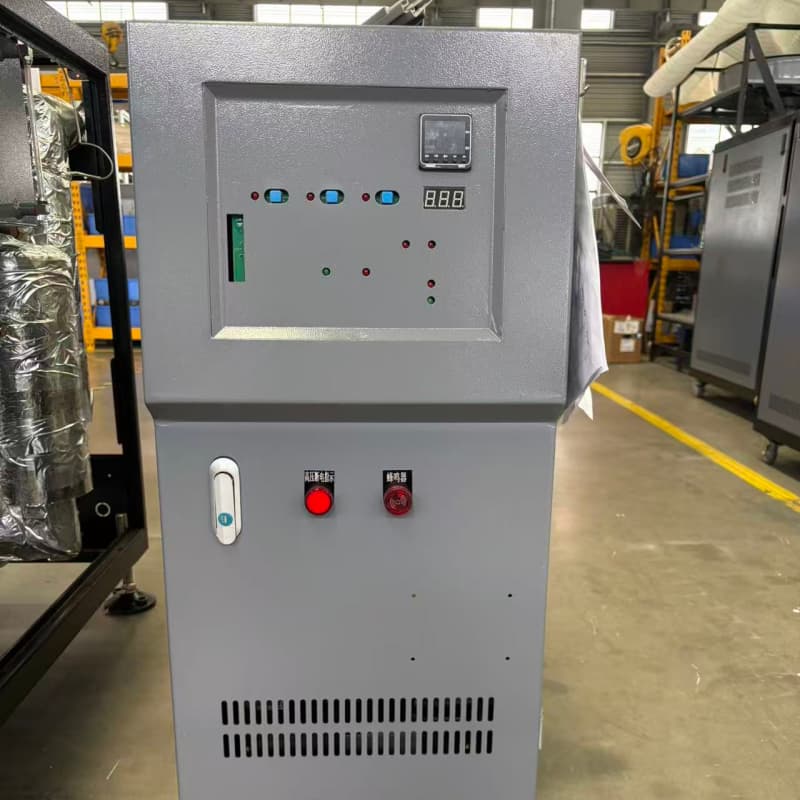

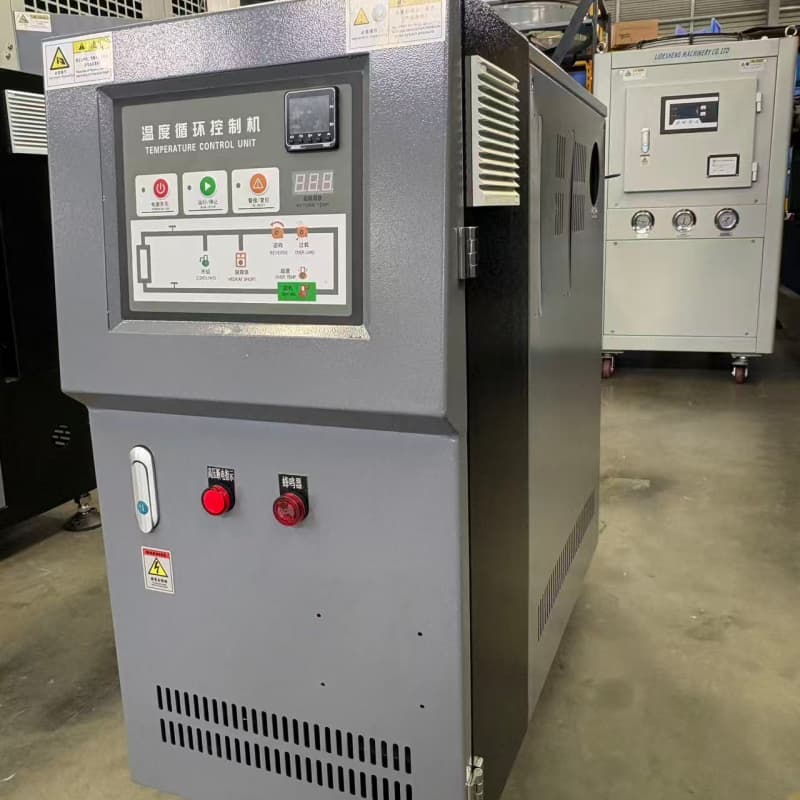

Water Temperature Control Machine Suitable for Precision Instruments -LWM-30-12KW

Water Temperature Control Machine Suitable for Precision Instruments -LWM-30-12KW

A Water Temperature Control Machine for Precision Instruments is a high-precision, stable, and energy-efficient closed-loop water circulation system. It is designed to maintain an accurate, constant water temperature to cool or heat precision instruments, ensuring their performance, accuracy, and longevity.

  • Số mục :

    LWM-30-12kw
  • Đơn hàng (MOQ) :

    1
  • Sự chi trả :

    EXW/FOB/CIF/FCA/DPU/DDU
  • Nguồn gốc sản phẩm :

    CHINA
  • Màu sắc :

    Customizable
  • Cảng vận chuyển :

    SHANGHAI/NANJING
  • Thời gian dẫn :

    15
  • Cân nặng :

    120kg
Sản phẩm mới
Hot Water Temperature Control Unit

LWM Series Water Temperature Control Unit




Heating Stage: Water is heated indirectly via electric heating tubes or heat-conducting oil to raise its temperature to 120°C. Since 120°C exceeds the boiling point of water (100°C) under standard atmospheric pressure, the equipment maintains water in a liquid state through sealed pressurization.

Circulation Stage: High-temperature hot water is delivered by a circulation pump to temperature-controlled equipment such as molds and reaction kettles, where heat exchange is completed.

Temperature Control Stage: A temperature sensor monitors the water temperature in real time. When the temperature is lower than the set value, heating is activated; when it is higher than the set value, heating is stopped. This ensures the water temperature remains stable at approximately 120°C

Water Temperature Control Unit Application

Main Application Fields

  • Injection Molding Industry: Used to heat injection molds, improving the fluidity of plastic melts and reducing product defects such as shrinkage and deformation.
  • Chemical Industry: Applied for temperature control of chemical reaction kettles, ensuring chemical reactions proceed in a stable environment at 120°C.
  • Food Industry: Utilized in processing links that require high-temperature hot water, such as canned food sterilization and sauce boiling (must meet food-grade material requirements).
  • Electronics Industry: Employed in the packaging process of electronic components, enhancing product quality through stable temperature control.



Safety Protection Function

  • Precise Temperature Control: The temperature fluctuation range can usually be controlled within ±0.5°C to ±1°C, meeting the requirements of high-precision processes.
  • High Thermal Efficiency: Water has a higher thermal conductivity than heat-conducting oil, enabling faster heat transfer and shortening the equipment's heating-up time.
  • Safety and Environmental Friendliness: Compared with oil temperature machines, water (as a medium) has no ignition point and no peculiar smell. In case of leakage, it causes less pollution to the environment and equipment.



FAQ



Q1: Are you a trading company or a manufacturer?

A1: We are a trading company under Jiangsu Rongyida Co., Ltd., which owns a strong manufacturing base for temperature control equipment. This allows us to provide both factory-direct pricing and customized technical solutions.

Q2: How can I choose the right temperature control equipment for my factory?

A2: Just send us the following information:

Required temperature range;Heating/cooling medium;Power supply voltage;Industry/application (e.g., plastic, chemical, food, etc.)

Our engineers will recommend the best model for you within 24 hours.

Q3: What is your delivery time?

A3: Usually 7–15 working days for standard models and 20–30 days for customized systems. We will confirm exact lead time after order details are finalized.



Model And Technical Parameter

Model Unit LWM-05 LWM-10 LWM-20 LWM-30 LWM-50 LWM-75
Temp. control range Inlet water temperature +15-120℃
Temp. accuracy PID±1℃
Power AC3Φ380V 50HZ 3P+E(5M)
Heat transfer medium Water
Cooling methad Indirect cooling
Heating capacity KW 6 9 12/18 24/36 45/60 75/90
Pump power HP 0.5 1 2 3 5 7.5
Max.pump flow L/min 95 165 236 315 385 415
Max.pump pressure Bar 2 2.2 2.4 2.6 2.8 3
Power supplier KW 7 10 13/19 26/38 49/64 80/95
Cooling water pipe Inch 1/2 1/2 1/2 1/2 3/4 1
Circulation oil pipe Inch 1/2 3/4 1 1.2 1.5 2.5
Dimension(mm) L 650 625 850 1110 1200 1670
W 280 325 400 420 500 550
H 520 650 900 1110 1260 1360
Weight kg 62 68 75 90 150 180



Note: The specification is subject to change due to product improvement without prior notice.



Process Flow Diagram







Application Case

Our water temperature control unit is widely used across various industrial applications, including casting moulds, rubber vulcanization, wheel temperature control, hot press technology, carbon fiber production, and chemical reactions. It ensures precise temperature management, improving production efficiency and product quality in these processes.
